Aerosol Paint Filling
Aerosol Paint Filling Machine
An enclosed aerosol paint filling unit with pressure gauge and front access.
View equipmentAerosol Paint Filling

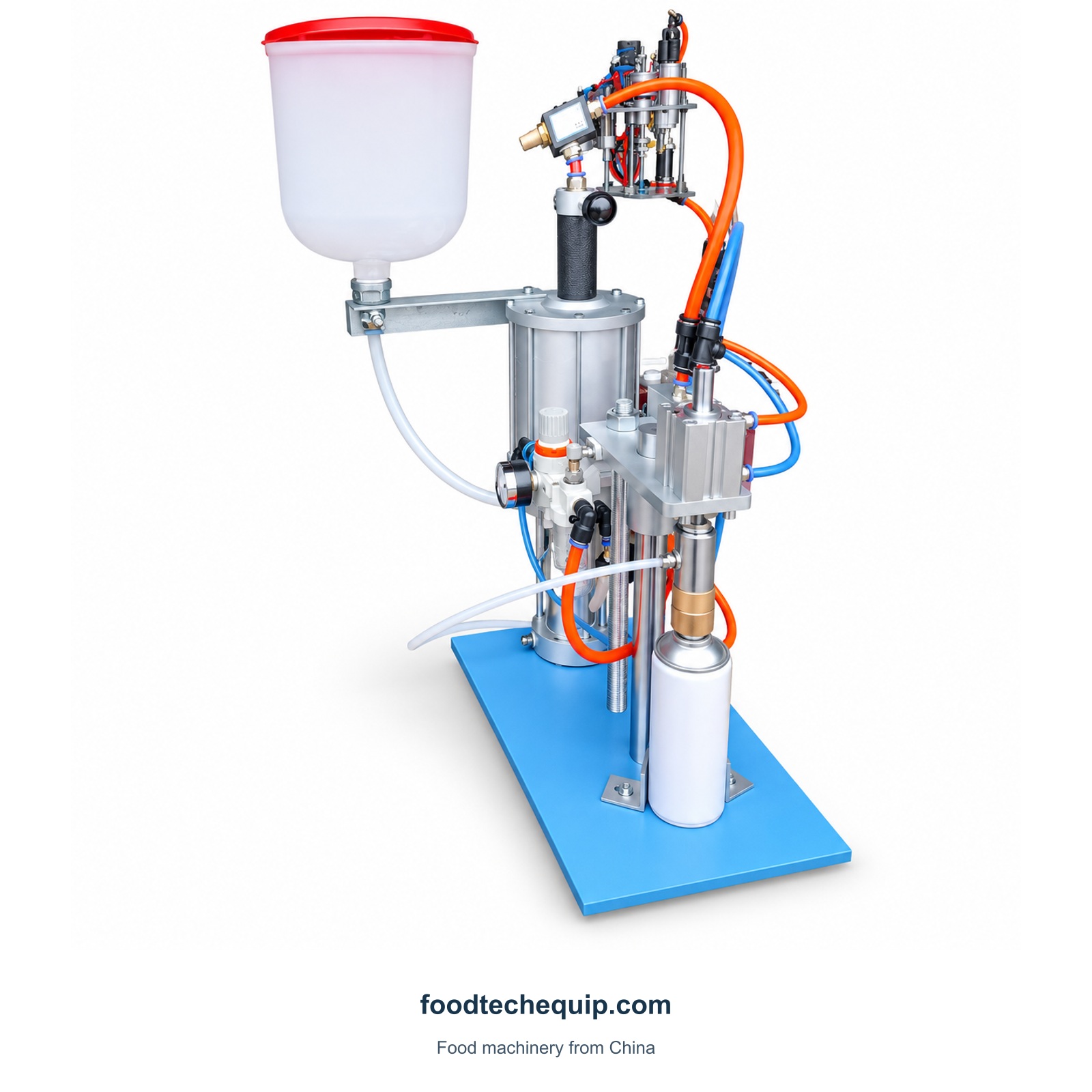

Pneumatic Aerosol Paint Filling Machine
A pneumatic aerosol paint filling layout with feed container and can support.
- Number of filling headsVolumetric cup filling configuration
- 1
- Applicable bottle heightVolumetric cup filling configuration
- 50-90 mm
- Applicable bottle diameterVolumetric cup filling configuration
- 12 mm
Equipment selection · Installation guidance · Remote support
Explore product information ↓Planning this equipment into your workflow
Describe the paint, can and intended process stage before discussing the volumetric-cup entry. Aerosol paint handling needs a separate process and site-suitability assessment; food filling suitability is not implied.
How to Prepare an Equipment Enquiry ↗Applications
Specifications & configurations
| Parameter | Value | Unit | Configuration |
|---|---|---|---|
| Number of filling heads | 1 | — | Volumetric cup filling configuration |
| Applicable bottle height | 50-90 | mm | Volumetric cup filling configuration |
| Applicable bottle diameter | 12 | mm | Volumetric cup filling configuration |
| Filling rate | 10-29 | bottles/min | Volumetric cup filling configuration |
| Filling volume | 200 | mL | Volumetric cup filling configuration |
| Number of filling heads | 1 | — | Continuous filling configuration |
| Applicable bottle height | 95-160 | mm | Continuous filling configuration |
| Applicable bottle diameter | 15 | mm | Continuous filling configuration |
| Filling rate | 50-60 | bottles/min | Continuous filling configuration |
| Filling volume | 200-2000 | mL | Continuous filling configuration |
Where this task fits in your process
Keep the aerosol-paint process brief separate from food filling. Identify the exact operation requested, the can and valve assembly, and the site assessment requirements with qualified personnel.
Tell us about your requirements.
- Scope of work and formulation information
- Complete container assembly
- Assessment by qualified personnel
- Configuration of interest: Volumetric cup filling configuration, Continuous filling configuration
- Required output at the intended pack format
- Available power supply and destination
